Indoor & Vertical
TG-30HVR Series
The TG-30HVR offers optimized spectrums for propagation to full-cycle cultivation in all vertical farming applications.
Indoor & Vertical
TG-100HVR F Series
This folding fixture features unparalleled power, performance, spectrums and control for large scale commercial cultivation.
Indoor & Vertical
TG-100HVR M Series
This modular fixture is crafted for scalability and flexibility in facility design, ensuring unmatched performance and control.
Indoor & Greeenhouse
TG-1000HVR L Series
Ideal for large indoor canopies and greenhouses, this linear design provides perfect power & spectrums for crops.

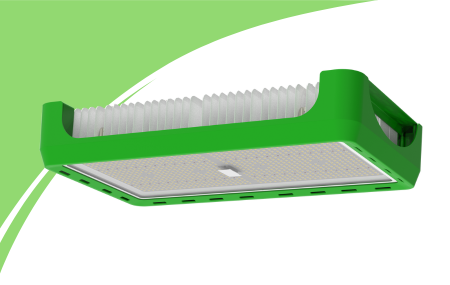

Indoor & Greenhouse
TG-1000HVR S Series
Designed for large scale commercial growing. No on-board ballasts allow for unlimited flexibility in layout design, remove heat from the grow room - unparalelled performance & control.

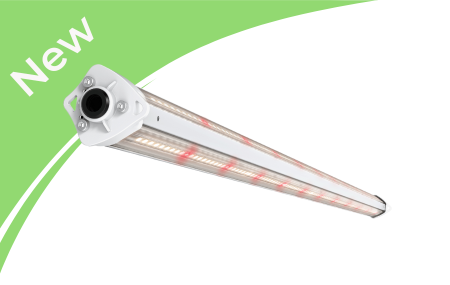

Indoor & Vertical
TG-ILX-HVR Series
Delivering the optimal growing spectrum for plants to thrive, the TG-30HVR only consumes 30 watts and produces 60 μmol/s of full-spectrum light
Indoor & Vertical

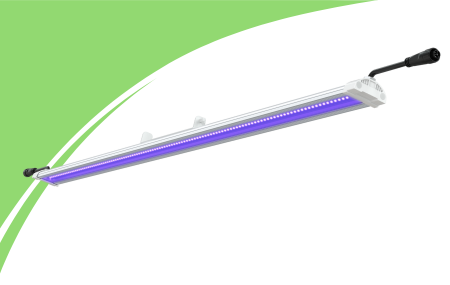

UV Light Bar Series
Delivering the optimal growing spectrum for plants to thrive, the TG-30HVR only consumes 30 watts and produces 60 μmol/s of full-spectrum light
Indoor & Greenhouse
TG-800HVR Series
Delivering the optimal growing spectrum for plants to thrive, the TG-30HVR only consumes 30 watts and produces 60 μmol/s of full-spectrum light

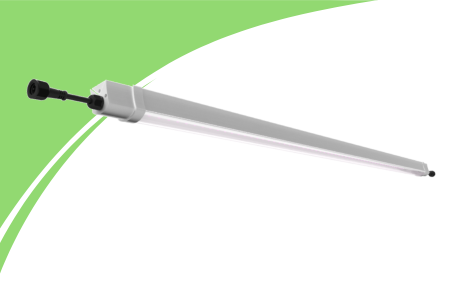

TG-30HVR
Delivering the optimal growing spectrum for plants to thrive, the TG-30HVR only consumes 30 watts and produces 60 μmol/s of full-spectrum light to provide a versatile growing solution for indoor and greenhouse cultivation.
| P65 Rated |
| Daisy Chain Multiple Bars Together |
| Low Profile |
| Designed for Vertical Growing |
| Easy Mounting High Yield Spectrum |
| PPF | 60 μmol/s |
| Power Consumption | 30W±10% |
| Efficacy | 2 μmol/J |
| Operating Temperature | -20ºC to 40ºC |
| Thermal Management | Passive |
| Dimming | No |
| Weight | 2 lbs |
| TLI | Yes |
| Heat Output | 256 - 512 BTU/hr |
| Warranty |
3 - 5 years |
| Spectrum Full Plant (FP, WL) |
| Flower Power Spectrum |
| Custom Spectrums Available |
| Height: 1.6 inches |
| Width: 1.4 inches |
| Length: 48.6 inches |

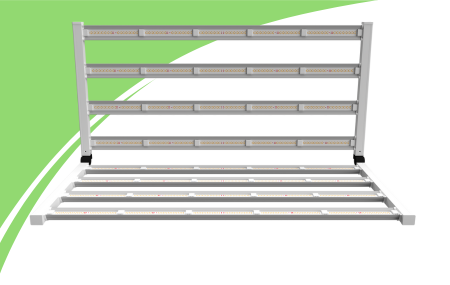

TG-100HVR Folding Fixture
The TG-100HVR is the first folding style fixture designed for large scale growing. No on-onboard ballasts allow for unlimited flexibility in layout design and remove heat from the grow room, resulting in easy installation, simplified maintenance and overall performance and control.
| No Local Ballast |
| Removes Heat from Growing Area |
| Plug n'play replacement, simplified maintenance |
| Tunable Power to Meet All DLI Needs (TLI) |
| Daisy-chained |
| Ideal for High DLI Crops such as Cannabis |
| Perfect for Vertical Applications |
| A Variety of Configurations |
| Centralized Troubleshooting and Maintenance - no need for additional dimming wire installation |
| Highly Efficient and Cost Effective |
| Full Spectrum |
| Zone, Local, and Cloud Control |
|
PPF |
up to 3000 µmol/s |
| Input Power | 1000 W |
| Efficacy | up to 3 µmol/j |
| Dimming | 0 - 100% |
| Operating Temperature | -20ºC to 40ºC |
| Thermal Management | Passive |
| Ballast | Remote |
| Weight | 18 lbs. |
| Spectrum | Full |
| Heat Output | 0-3414 BTU/hr |
| Warranty | 3-5 years |
| White Lightening (WL3S) |
| White Lightening (WL) |
| Veg Spectrum (VS) |
| Flower Power Spectrum (FP) |
| Height: | 43 inches |
| Width: | 47 inches |

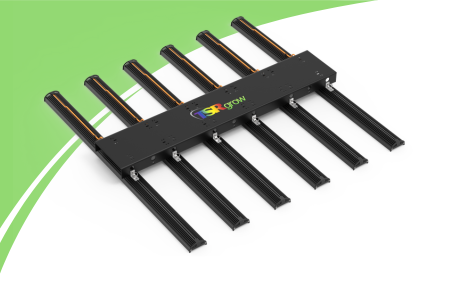

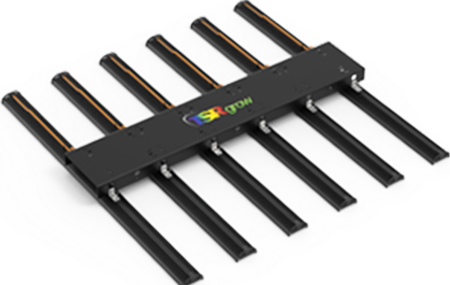

TG-100HVR Modular Bar Fixture
The TG-100HVR is the first bar fixture designed for large scale growing. With remote power servers, the layout can be designed for the crop and facility with tailored PPF and DLI. Decoupling the power from the light gives unlimited flexibility in layout design, supports easy installation, simplified maintenance and unparalleled performance and control.
| Full Plant Spectrum to Maximize Yield |
| Remote Power Servers |
| Remove Heat from Growing Area |
| Plug 'n play Quick Disconnects for Easy Installation and Servicing |
| Tunable Power to Meet DLI Needs (TLI) |
| Ideal for High DLI Crops such as Cannabis |
| Centralized Troubleshooting and Maintenance and Control - no need for additional dimming wire installation |
| Cost Effective and Highly Efficient |
| Full Spectrum |
| Zone, Local, and Cloud Control |
|
PPF |
0-2565 µmol/s |
| Tunable Power | 0-950 W |
| Voltage | HVDC |
| Efficacy | 2.7 µmol/J |
| Dimming | 0 - 100% |
| Operating Temperature | -20ºC to 40ºC |
| Thermal Management | Passive |
| Ballast | Remote |
| Weight | 30 lbs. |
| Spectrum | Full |
| Heat Output | 0-3243 BTU/hr |
| Warranty | 3-5 years |
| Spectrum Full Plant (FP, WL |
| Flower Power Spectrum |
| Height: | 3.75 inches |
| Width: | 45 inches |
| Length: | 44.25 inches |

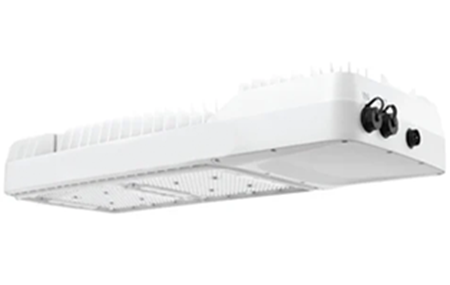

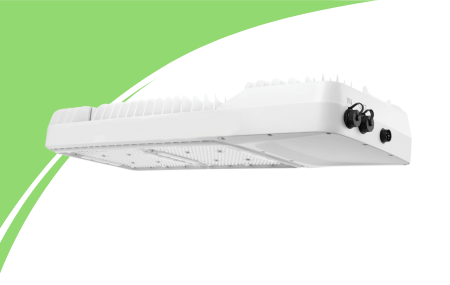

TG-800HVR Top Light
TSRgrow's Plug'n Play 800W LED top light is the perfect solution for replacing HPS lighting while improving efficiency and yields. The TG-800HVR is designed to fit seamlessly into existing installations, with uniform coverage that is compatible with HPS setups. It delivers an optimized spectrum for plant growth, while eliminating maintenance of bulbs and reflectors and providing significant energy savings.
| Full Spectrum Targeting Optimized Plant Growth |
| Plug and Play Compatibility to Existing Wiring |
| Compatible with Existing Control Systems |
| Infinite Syncing and Dimming |
| Cost Effective with High Efficiency |
| No Bulb Replacements, Fast ROI |
| Spectrum | WL5 |
| Efficacy | 2.6 µmol/J |
| PPFD/PPF | 208 µmol/s |
| Input Power | 800W |
| Input Voltage | 100-277 / 277-480 V |
| Dimensions | 13.75" x 45" x 44.25" |
| Net Weight | 33.51 lbs. |
| IP Rating | IP66 |
| Thermal Management | Passive |
| Dimming | 0-10 V |
| Max Operating Temperature | 0º to 55ºC (0-131º F) |
| Power Factor | >0.96 |
| Supply Frequency | 50/60 Hz |
| THD | >10% |
| AC Connector | 2150 BTU/hr |
| Lifetime | Q90: >50,000 hrs. |
| Warranty | 5 Years |
| Certifications | ETL, DLC |
| Spectrum: White Lightening Spectrum Curve |

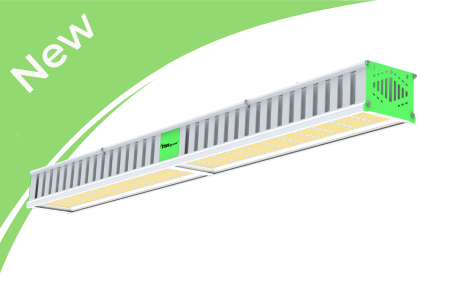

TG-1000HVR L Series
Delivering the optimal growing spectrum for plants to thrive, the TG-30HVR only consumes 30 watts and produces 60 μmol/s of full-spectrum light.
