TG-600HVR

Best suited for large canopies, the TG-600HVR delivers optimal growing spectrum for plants to thrive. Featuring 100% tunable power to meet daily light integral (DLI) needs, the TG-600HVR emits up to 600W and 1375 μmol/s of full-spectrum light to provide a versatile growing solution for indoor and greenhouse cultivation.




  • Remote Ballast/Driver
  • Removes Heat from Growing Area
  • Plug'n Play Replacement - no more sky hooks for driver maintenance
  • Tunable Power to Meet DLI Needs (TLI)
  • Ideal for High DLI Crops Such as Cannabis
  • Centralized Trouble Shooting and Maintenance
  • Cost Effective and High Efficiency
  • Full Spectrum
  • Zone, Local, and Cloud Control



PPF 825-1375 µmol/s Tunable Power 0-300-500 W Voltage HVDC
Power 14.5 lbs
Efficacy 2.5 2.75 µmol/J
Operating Temperature 0 - 100%
Thermal Management -20ºC to 40ºC
Ballast Passive
Weight Remote
TLI Yes
Heat Output 1024-1700 BTU/hr
Warranty 3 - 5 year
  • Spectrum Full Plant (FP, WL)
  • Flower Power Spectrum
Asset

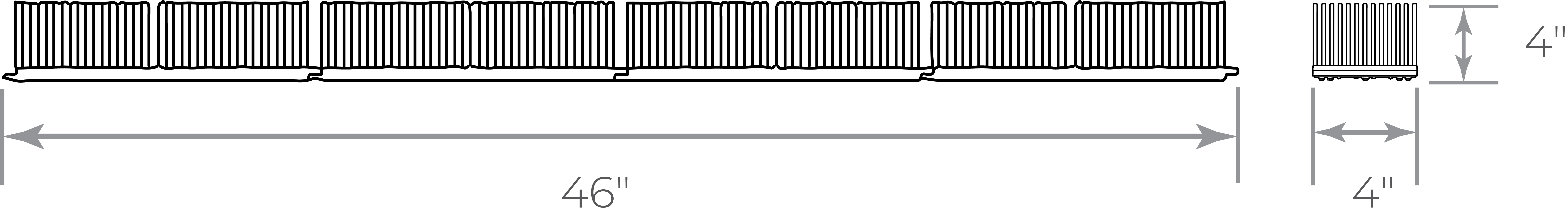

  • Height: 4 inches
  • Width: 4 inches
  • Length: 46 inches
diagram



  • Remote Ballast/Driver
  • Removes Heat from Growing Area
  • Plug'n Play Replacement - no more sky hooks for driver maintenance
  • Tunable Power to Meet DLI Needs (TLI)
  • Ideal for High DLI Crops Such as Cannabis
  • Centralized Trouble Shooting and Maintenance
  • Cost Effective and High Efficiency
  • Full Spectrum
  • Zone, Local, and Cloud Control



PPF 825-1375 µmol/s Tunable Power 0-300-500 W Voltage HVDC
Power 14.5 lbs
Efficacy 2.5 2.75 µmol/J
Operating Temperature 0 - 100%
Thermal Management -20ºC to 40ºC
Ballast Passive
Weight Remote
TLI Yes
Heat Output 1024-1700 BTU/hr
Warranty 3 - 5 year
  • Spectrum Full Plant (FP, WL)
  • Flower Power Spectrum
Asset
  • Height: 4 inches
  • Width: 4 inches
  • Length: 46 inches
diagram

TG-30HVR

Delivering the optimal growing spectrum for plants to thrive, the TG-30HVR only consumes 30 watts and produces 60 μmol/s of full-spectrum light to provide a versatile growing solution for indoor and greenhouse cultivation.




  • P65 Rated
  • Daisy Chain Multiple Bars Together
  • Low Profile
  • Designed for Vertical Growing
  • Easy Mounting High Yield Spectrum





PPF 60 μmol/s
Power 30W
Efficacy 2 μmol/J
Operating Temperature -20ºC to 40ºC
Thermal Management Passive
Dimming No
Weight 2 lbs
TLI Yes
Heat Output 256 - 512 BTU/hr
Warranty 3 - 5 years

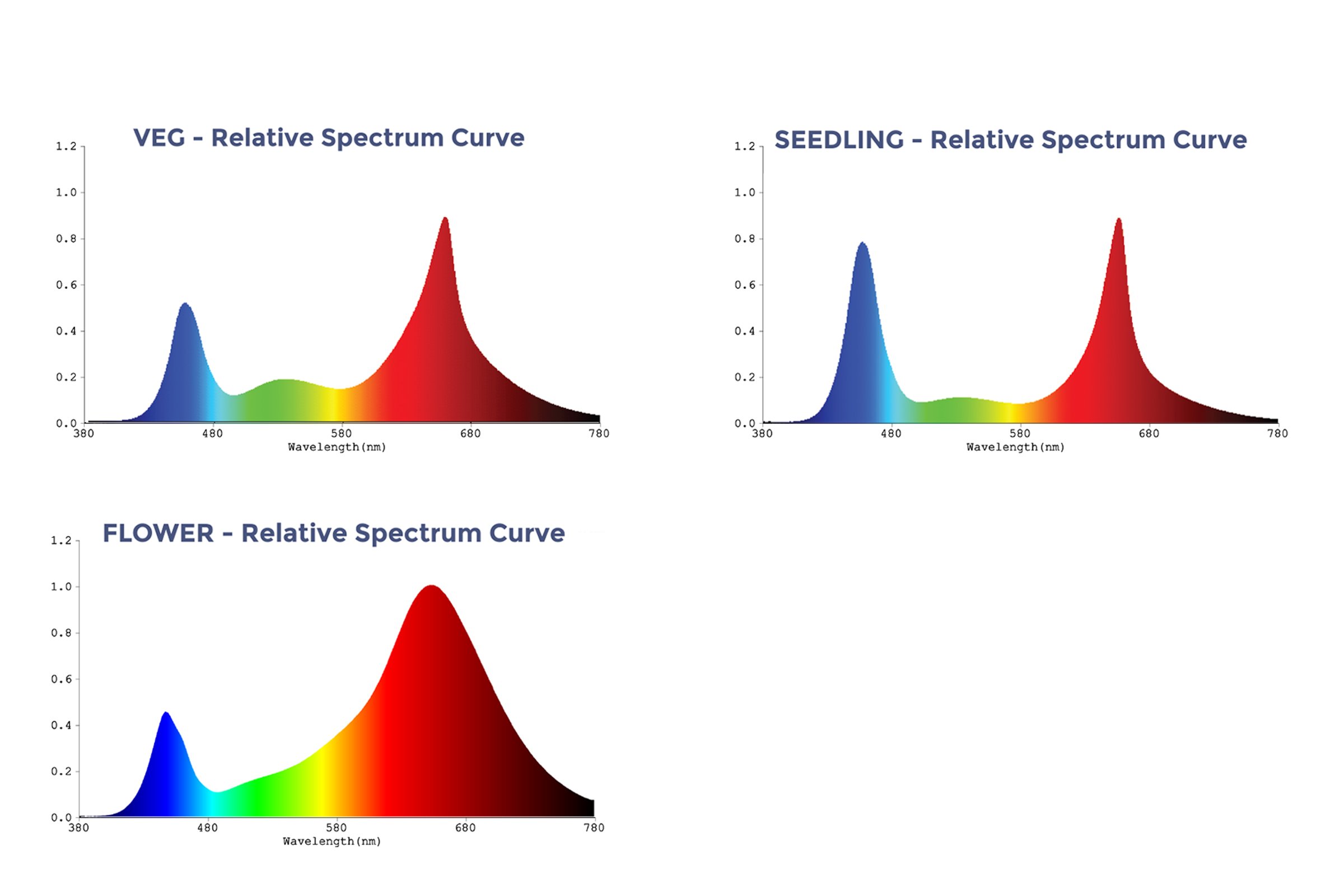

  • Spectrum Full Plant (FP, WL)
  • Flower Power Spectrum
Lighting-Spectrum

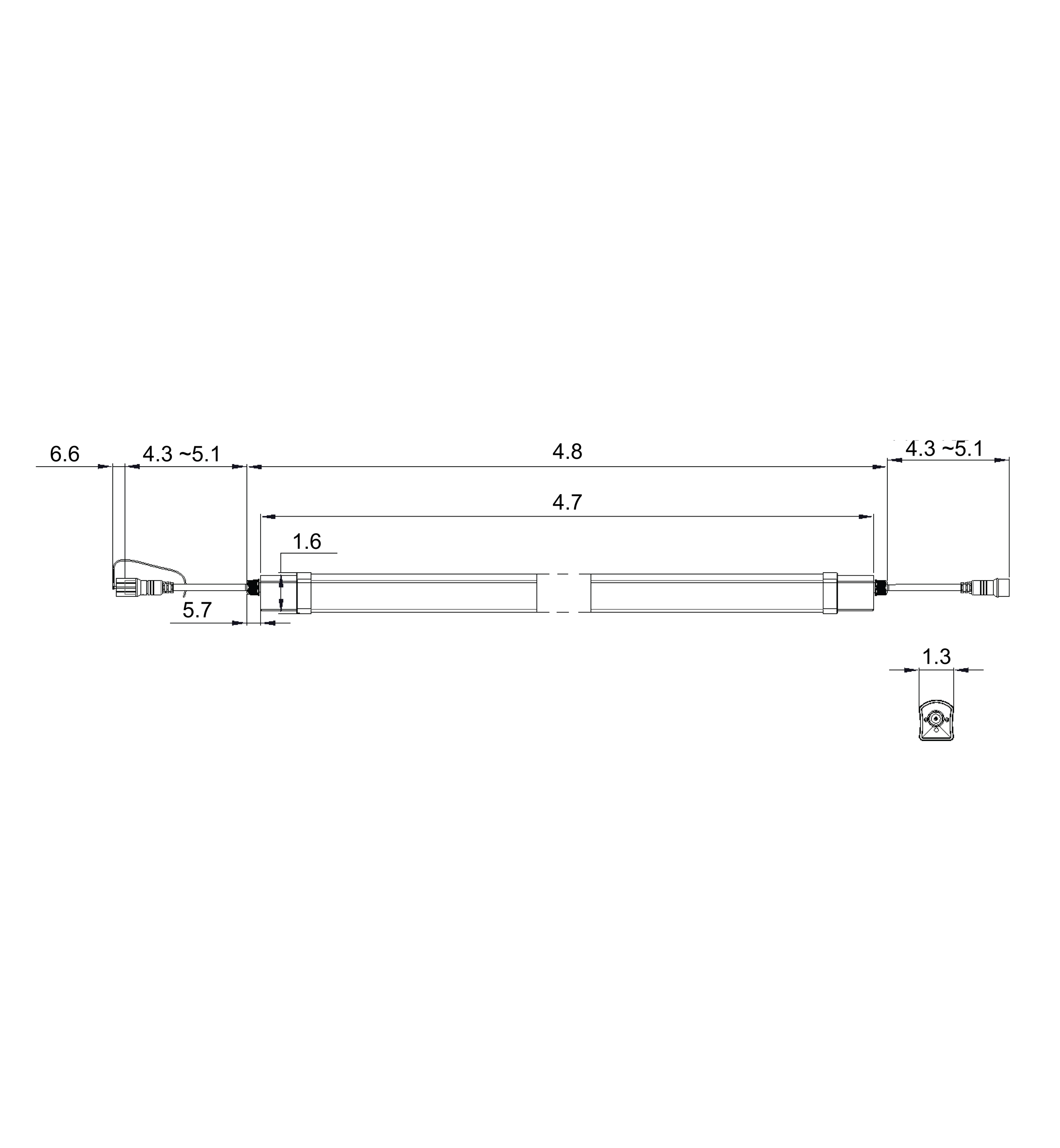

  • Height: 1.3 inches
  • Width: 1.3 inches
  • Length: 4.7 inches

TG-30HVR-Lighting-Dimensions



  • P65 Rated
  • Daisy Chain Multiple Bars Together
  • Low Profile
  • Designed for Vertical Growing
  • Easy Mounting High Yield Spectrum





PPF 60 μmol/s
Power 30W
Efficacy 2 μmol/J
Operating Temperature -20ºC to 40ºC
Thermal Management Passive
Dimming No
Weight 2 lbs
TLI Yes
Heat Output 256 - 512 BTU/hr
Warranty 3 - 5 years
  • Spectrum Full Plant (FP, WL)
  • Flower Power Spectrum
Lighting-Spectrum
  • Height: 1.3 inches
  • Width: 1.3 inches
  • Length: 4.7 inches

TG-30HVR-Lighting-Dimensions

TG-100HVR

The TG-100HVR is the first bar fixture designed for large scale growing. With remote power servers, the layout can be designed for the crop and facility with tailored PPF and DLI. Decoupling the power from the light gives unlimited flexibility in layout design, supports easy installation, simplified maintenance and unparalleled performance and control.


  • Full Plant Spectrum to Maximize Yield
  • Remote Power Servers
  • Remove Heat from Growing Area
  • Plug 'n play Quick Disconnects for Easy Installation and Servicing
  • Tunable Power to Meet DLI Needs (TLI)
  • Ideal for High DLI Crops Such as Cannabis
  • Centralized Troubleshooting and Maintenance and Control - no need for additional dimming wire installation
  • Cost Effective and Highly Efficient
  • Full Spectrum
  • Zone, Local, and Cloud Control



PPF 187 - 375 µmol/s
Power 75 - 150 WVoltage HVDC
Efficacy 2.5 µmol/JDimming 0 - 100%
Operating Temperature -20ºC to 40ºC
Thermal Management Passive
Ballast Remote
Weight 4.5 lbs
TLI Yes
Heat Output 256 - 512 BTU/hr
Warranty 3 - 5 years
  • Spectrum Full Plant (FP, WL)
  • Flower Power Spectrum

TG-30HVR-Lighting-Spectrum

Height: 3.75 inches

Width: 45 inches

Length: 44.25 inches

TG100DIAGRAM
  • Full Plant Spectrum to Maximize Yield
  • Remote Power Servers
  • Remove Heat from Growing Area
  • Plug 'n play Quick Disconnects for Easy Installation and Servicing
  • Tunable Power to Meet DLI Needs (TLI)
  • Ideal for High DLI Crops Such as Cannabis
  • Centralized Troubleshooting and Maintenance and Control - no need for additional dimming wire installation
  • Cost Effective and Highly Efficient
  • Full Spectrum
  • Zone, Local, and Cloud Control



PPF 187 - 375 µmol/s
Power 75 - 150 WVoltage HVDC
Efficacy 2.5 µmol/JDimming 0 - 100%
Operating Temperature -20ºC to 40ºC
Thermal Management Passive
Ballast Remote
Weight 4.5 lbs
TLI Yes
Heat Output 256 - 512 BTU/hr
Warranty 3 - 5 years
  • Spectrum Full Plant (FP, WL)
  • Flower Power Spectrum

TG-30HVR-Lighting-Spectrum

Height: 3.75 inches

Width: 45 inches

Length: 44.25 inches

TG100DIAGRAM

TG-1000HVR

Best suited for large canopies, the TG-1000HVR delivers optimal growing spectrum for plants to thrive. Featuring 100% tunable power to meet daily light integral (DLI) needs, the TG-1000HVR emits up to 1000W and 2750 μmol/s of full-spectrum light to provide a versatile growing solution for indoor and greenhouse cultivation.

TG500
TG500_1 (1)-p-1080
  • Remote Ballast/Driver
  • Removes Heat from Growing Area
  • Plug'n Play Replacement
  • Tunable Power to Meet DLI Needs (TLI)
  • Ideal for High DLI Crops Such as Cannabis
  • Centralized Troubleshooting and Maintenance
  • Cost Effective and High Efficiency
  • Full Spectrum
  • Zone, Local, and Cloud Control
PPF 1375-2750 umol/s
Tunable Power 500-1000W
Voltage HVDC
Weight 14.5lbs
Efficacy 2.75umol/J
Dimming 0-100%
Operating Temp -20C to 40C
Thermal Management Passive
Ballast Remote
Spectrum Full Plant (WL)
TLI Yes
Heat Output 1700-3412 Btu/hr

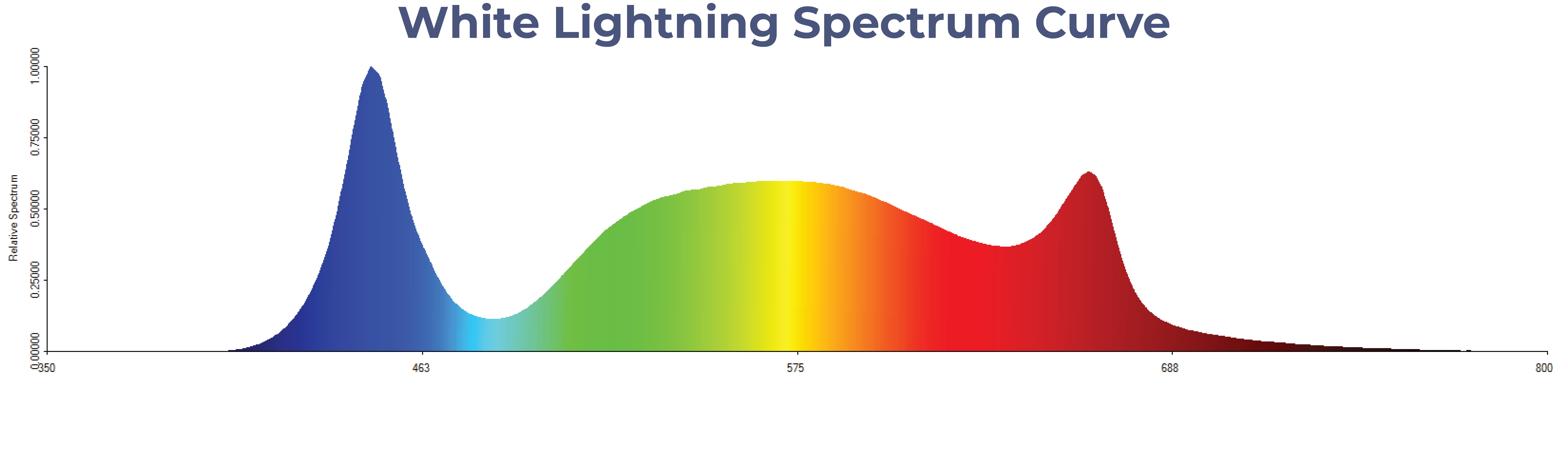

  • Spectrum: Full Plant (WL)
  • Dual Peak at 480 and 600nm
Asset

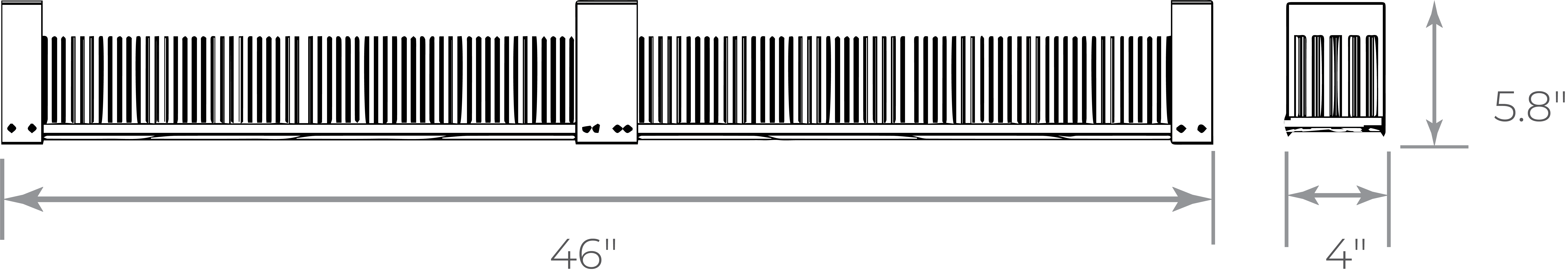

  • Height: 5.8 inches
  • Width: 4 inches
  • Length: 46 inches
TG1000diagram
  • Remote Ballast/Driver
  • Removes Heat from Growing Area
  • Plug'n Play Replacement
  • Tunable Power to Meet DLI Needs (TLI)
  • Ideal for High DLI Crops Such as Cannabis
  • Centralized Troubleshooting and Maintenance
  • Cost Effective and High Efficiency
  • Full Spectrum
  • Zone, Local, and Cloud Control
PPF 1375-2750 umol/s
Tunable Power 500-1000W
Voltage HVDC
Weight 14.5lbs
Efficacy 2.75umol/J
Dimming 0-100%
Operating Temp -20C to 40C
Thermal Management Passive
Ballast Remote
Spectrum Full Plant (WL)
TLI Yes
Heat Output 1700-3412 Btu/hr
  • Spectrum: Full Plant (WL)
  • Dual Peak at 480 and 600nm
Asset
  • Height: 5.8 inches
  • Width: 4 inches
  • Length: 46 inches
TG1000diagram
