LED LIGHTING SOLUTIONS
Advanced LED lighting is the best and most efficient solution for your indoor grow.
Using remote high voltage DC driver technology, TSRgrow's LED lighting solutions deliver 100% tunable power for precise DLI control, resulting in outstanding quality and yield every grow cycle!
TG-30HVR
Delivering the optimal growing spectrum for plants to thrive, the TG-30HVR only consumes 30 watts and produces 60 μmol/s of full-spectrum light to provide a versatile growing solution for indoor and greenhouse cultivation.
- P65 Rated
- Daisy Chain Multiple Bars Together
- Low Profile
- Designed for Vertical Growing
- Easy Mounting High Yield Spectrum
| PPF | 60 μmol/s |
| Power Consumption | 30W±10% |
| Efficacy | 2 μmol/J |
| Operating Temperature | -20ºC to 40ºC |
| Thermal Management | Passive |
| Dimming | No |
| Weight | 2 lbs |
| TLI | Yes |
| Heat Output | 256 - 512 BTU/hr |
| Warranty |
3 - 5 years |

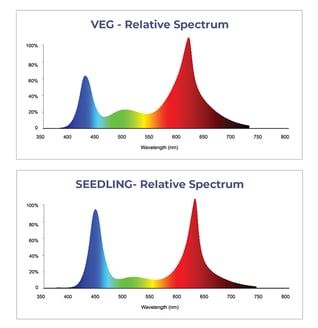

- Spectrum Full Plant (FP, WL)
- Flower Power Spectrum
- Custom Spectrums Available

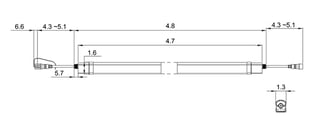

- Height: 1.3 inches
- Width: 1.3 inches
- Length: 4.7 inches
TG-100HVR
The Lighting Solution for Optimal Growth
The TG-100HVR is the first folding style fixture designed for large scale growing. No on-onboard ballasts allow for unlimited flexibility in layout design and remove heat from the grow room, resulting in easy installation, simplified maintenance and overall performance and control.
- No Local Ballast
- Removes Heat from Growing Area
- Plug n'play replacement, simplified maintenance
- Tunable Power to Meet All DLI Needs (TLI)
- Daisy-chained
- Ideal for High DLI Crops such as Cannabis
- Perfect for Vertical Applications
- A Variety of Configurations
- Centralized Troubleshooting and Maintenance - no need for additional dimming wire installation
- Highly Efficient and Cost Effective
- Full Spectrum
- Zone, Local, and Cloud Control
|
PPF |
up to 3000 µmol/s |
| Input Power | 1000 W |
| Efficacy | up to 3 µmol/j |
| Dimming | 0 - 100% |
| Operating Temperature | -20ºC to 40ºC |
| Thermal Management | Passive |
| Ballast | Remote |
| Weight | 18 lbs. |
| Spectrum | Full |
| Heat Output | 0-3414 BTU/hr |
| Warranty | 3-5 years |
- White Lightening (WL3S)
- White Lightening (WL)
- Veg Spectrum (VS)
- Flower Power Spectrum (FP)
- Height: 43 inches
- Width: 47 inches
TG-100HVR
The TG-100HVR is the first bar fixture designed for large scale growing. With remote power servers, the layout can be designed for the crop and facility with tailored PPF and DLI. Decoupling the power from the light gives unlimited flexibility in layout design, supports easy installation, simplified maintenance and unparalleled performance and control.
- Full Plant Spectrum to Maximize Yield
- Remote Power Servers
- Remove Heat from Growing Area
- Plug 'n play Quick Disconnects for Easy Installation and Servicing
- Tunable Power to Meet DLI Needs (TLI)
- Ideal for High DLI Crops such as Cannabis
- Centralized Troubleshooting and Maintenance and Control - no need for additional dimming wire installation
- Cost Effective and Highly Efficient
- Full Spectrum
- Zone, Local, and Cloud Control
|
PPF |
0-2565 µmol/s |
| Tunable Power | 0-950 W |
| Voltage | HVDC |
| Efficacy | 2.7 µmol/J |
| Dimming | 0 - 100% |
| Operating Temperature | -20ºC to 40ºC |
| Thermal Management | Passive |
| Ballast | Remote |
| Weight | 30 lbs. |
| Spectrum | Full |
| Heat Output | 0-3243 BTU/hr |
| Warranty | 3-5 years |
- Spectrum Full Plant (FP, WL)
- Flower Power Spectrum
- Height: 3.75 inches
- Width: 45 inches
- Length: 44.25 inches
TG-600HVR
Best suited for large canopies, the TG-600HVR delivers optimal growing spectrum for plants to thrive. Featuring 100% tunable power to meet daily light integral (DLI) needs, the TG-600HVR emits up to 600W and 1375 μmol/s of full-spectrum light to provide a versatile growing solution for indoor and greenhouse cultivation.
- Remote Ballast/Driver
- Removes Heat from Growing Area
- Plug'n Play Replacement - no more sky hooks for driver maintenance
- Tunable Power to Meet DLI Needs (TLI)
- Ideal for High DLI Crops Such as Cannabis
- Centralized Trouble Shooting and Maintenance
- Cost Effective and High Efficiency
- Full Spectrum
- Zone, Local, and Cloud Control
| Efficacy | 2.4 µmol/J @ 277VAC |
| PPF | 1564 µmol/s |
| Input Power | 642W @ 277 VAC |
| Input Voltage | 100-277 VAC |
| Weight - Bar/Fixture | 14 lbs. |
| Thermal Management | Passive |
| Dimming | 0-10 V |
| Max Ambient Temperature | 45 º C |
| Power Factor | >0.96 |
| Supply Frequency | 50/60 Hz |
| THD | >10% |
| Lifetime | L90: >50,000 hrs. |
| Warranty | 5 Years Limited Warranty |
| Certifications | UL8800, UL1598 |
- Spectrum Full Plant (FP, WL)
- Flower Power Spectrum
- Height: 4 inches
- Width: 4 inches
- Length: 46 inches
TG-1000HVR
Best suited for large canopies, the TG-1000HVR delivers optimal growing spectrum for plants to thrive. Featuring 100% tunable power to meet daily light integral (DLI) needs, the TG-1000HVR emits up to 1000W and 2750 μmol/s of full-spectrum light to provide a versatile growing solution for indoor and greenhouse cultivation.
- Remote Ballast/Driver
- Removes Heat from Growing Area
- Plug'n Play Replacement
- Tunable Power to Meet DLI Needs (TLI)
- Ideal for High DLI Crops Such as Cannabis
- Centralized Troubleshooting and Maintenance
- Cost Effective and High Efficiency
- Full Spectrum
- Zone, Local, and Cloud Control
| PPF | up to 2400 umol/s |
| Tunable Power | 0-1000W |
| Voltage | HVDC |
| Weight | 18 lbs. |
| Efficacy | 2.4 umol/J |
| Dimming | 0-100% |
| Operating Temp | -20C to 40C |
| Thermal Management | Passive |
| Ballast | Remote |
| Spectrum | Full Plant (WL) |
| TLI | Yes |
| Heat Output | 3412 BTU/hr |
| Warranty | 3 - 5 years |
- Spectrum: Full Plant (WL / WL3)
- Dual Peak at 480 and 600nm
- Height: 5.8 inches
- Width: 4 inches
- Length: 46 inches
POWER
SOLUTIONS
Decoupling lighting from power for a sustainable and cost-efficient growing solution.
Using remote power servers, we eliminate the need for traditional on-fixture ballasts - removing heat from the grow, lowering costs, and providing a centralized control hub for all growing operations.
TGHV Remote Power Servers
Integral to any professional growing operation, the TGHV Remote Power Servers act as a centralized control hub for monitoring and management of all lights and sensors while eliminating additional in-room dimming wire and control installation costs. Remotely located from the grow, TGHV power servers provide easy-access Plug n' Play local maintenance while removing up to 15% of heat from the grow area, saving significant capital investment on HVAC.
TGHV benefits and features for large scale
Scalable Power
Modularly add, remove, change or scale power.
Monitoring
Lighting, power, environment -- always in the know.
Integrated Controls
Built-in controls, demand response ready and eliminate 3rd party software.
Distributed Power
Eliminate on-fixture ballast by locating outside the grow area.
Solar and Cogen
Integration with solar, battery, cogen and gas for peak demand reduction.
Tunable Power
100% tunability for customized settings and CAPx reduction.
Centralized Maintenance
Centralized operation and maintenance outside the grow
Adaptive Decisions
Master recipe for high yields.
Plug n’ Play
Simplify installation and access for lower costs.
Using Solar or Cogeneration?
Using solar or cogeneration for your grow? TOTALgrow Solution is designed to integrate with any power system. Learn more.
Learn MoreDATA MANAGEMENT
SOLUTIONS
Stay in the know with GrowHub our customizable dashboard that tracks the data you need for your grow. From fertigation to employee scheduling, grow smarter and manage the business of growing.
GrowHub
The TSRgrow GrowHub™ dashboard is the ultimate tool for scaling your commercial growing operation. User-friendly and completely customizable, GrowHub monitors every aspect of your grow -- from VPD and nutrient BPM to the exact timing and intensity of your TSRgrow LED fixtures.
Grow Smarter
-
+Receive notifications and alerts
+Cloud-based system for access anytime
+Monitor grow with video in real-time
-
+Data logging and analysis tools
+Calendar-based scheduling
+Control any compatible light fixture
TSRgrow GrowHub
GrowHub allows you complete control over all of your light's characteristics. This level of lighting precision empowers you to achieve specific lighting requirements by crop type and growth stage to produce the quality and yield you need.
- Cloud-based system for monitoring anytime, anywhere
- Data logging and analysis
- Real time monitoring and notifications with photo updates
- Customizable dashboards
- Calendar based scheduling
- See status overview and alerts for all your zones in one place.
- Store historical data of past and present grow cycles
- Control any compatible light fixture
- Make automation decisions based on data
- Not internet dependent, will continue to operate
- Operate in the appropriate range for optimal growth
Ready to take your business to the next level? TSRgrow's Seed to Sale dashboard is built to manage the business of growing. Sitting alongside our TSRgrow GrowHub dashboard, Seed to Sale streamlines day-to-day operations.
- Tracks everything from team schedules and supplies to waste and trimming ratios
- Creates tickets and alerts team members to complete their individual tasks.
- Fully customizable
ENVIRONMENTAL
SOLUTIONS
Monitor and control your grow for peak performance
With our master recipe and adaptive controls, we right size growing to achieve the perfect conditions for your crop and keep you on production targets.
Growing in the Right Environment
Zero emission and water neutral environment management is delivered by TSRgrow TOTALgrow Solution. Redundant units is a mission critical design in demanding quality plant yield so design it right, operate at the highest efficiency and have the support plan for continuous operation with TSRgrow.
Temperature
Humidity
VPD
Carbon Dioxide
Water
Nutrients
Integrated Growing
Better quality and higher yields, ensuring growing success from grow cycle to grow cycle
Monitoring
High accuracy sensors and wireless communication effortlessly gather and send meaningful data, allowing you to manage different growing zones.
Control
Control vital systems like your grow's lighting, C02 and HVAC to keep your grow operating at its best while keeping installation costs and CAPx costs low.
Data
See the ins and outs of your grow with anyalitical data in real-time for all growing zones, keeping you in the know from grow cycle to grow cycle.
Ask us about our Data Solutions
With years of growing experience under our belt and a team of knowledgeable growing experts, we are dedicated to ensuring your grow has the right environment. We are going beyond lighting.
Learn More
