TG-30HVR
Delivering the optimal growing spectrum for plants to thrive, the TG-30HVR only consumes 30 watts and produces 60 μmol/s of full-spectrum light to provide a versatile growing solution for indoor and vertical cultivation.
| P65 Rated |
| Daisy Chain Multiple Bars Together |
| Low Profile |
| Designed for Vertical Growing |
| Easy Mounting High Yield Spectrum |
| PPF | 60 μmol/s |
| Power Consumption | 30W±10% |
| Efficacy | 2 μmol/J |
| Operating Temperature | -20ºC to 40ºC |
| Thermal Management | Passive |
| Dimming | No |
| Weight | 2 lbs |
| TLI | Yes |
| Heat Output | 256 - 512 BTU/hr |
| Warranty |
3 - 5 years |
| Spectrum Full Plant (FP, WL) |
| Flower Power Spectrum |
| Custom Spectrums Available |
| Height: 1.6 inches |
| Width: 1.4 inches |
| Length: 48.6 inches |
TG-100HVR Folding Fixture
The TG-100HVR is the first folding style fixture designed for large scale growing. No on-onboard ballasts allow for unlimited flexibility in layout design and remove heat from the grow room, resulting in easy installation, simplified maintenance and overall performance and control.
| No Local Ballast |
| Removes Heat from Growing Area |
| Plug n'play replacement, simplified maintenance |
| Tunable Power to Meet All DLI Needs (TLI) |
| Daisy-chained |
| Ideal for High DLI Crops such as Cannabis |
| Perfect for Vertical Applications |
| A Variety of Configurations |
| Centralized Troubleshooting and Maintenance - no need for additional dimming wire installation |
| Highly Efficient and Cost Effective |
| Full Spectrum |
| Zone, Local, and Cloud Control |
|
PPF |
up to 3000 µmol/s |
| Input Power | 1000 W |
| Efficacy | up to 3 µmol/j |
| Dimming | 0 - 100% |
| Operating Temperature | -20ºC to 40ºC |
| Thermal Management | Passive |
| Ballast | Remote |
| Weight | 18 lbs. |
| Spectrum | Full |
| Heat Output | 0-3414 BTU/hr |
| Warranty | 3-5 years |
| White Lightening (WL3S) |
| White Lightening (WL) |
| Veg Spectrum (VS) |
| Flower Power Spectrum (FP) |
| Height: | 43 inches |
| Width: | 47 inches |
TG-100HVR Modular Bar Fixture
The TG-100HVR is the first bar fixture designed for large scale growing. With remote power servers, the layout can be designed for the crop and facility with tailored PPF and DLI. Decoupling the power from the light gives unlimited flexibility in layout design, supports easy installation, simplified maintenance and unparalleled performance and control.
| Full Plant Spectrum to Maximize Yield |
| Remote Power Servers |
| Remove Heat from Growing Area |
| Plug 'n play Quick Disconnects for Easy Installation and Servicing |
| Tunable Power to Meet DLI Needs (TLI) |
| Ideal for High DLI Crops such as Cannabis |
| Centralized Troubleshooting and Maintenance and Control - no need for additional dimming wire installation |
| Cost Effective and Highly Efficient |
| Full Spectrum |
| Zone, Local, and Cloud Control |
|
PPF |
0-2565 µmol/s |
| Tunable Power | 0-950 W |
| Voltage | HVDC |
| Efficacy | 2.7 µmol/J |
| Dimming | 0 - 100% |
| Operating Temperature | -20ºC to 40ºC |
| Thermal Management | Passive |
| Ballast | Remote |
| Weight | 30 lbs. |
| Spectrum | Full |
| Heat Output | 0-3243 BTU/hr |
| Warranty | 3-5 years |
| Spectrum Full Plant (FP, WL |
| Flower Power Spectrum |
| Height: | 3.75 inches |
| Width: | 45 inches |
| Length: | 44.25 inches |
TG-600HVR
Best suited for large canopies, the TG-600HVR delivers optimal growing spectrum for plants to thrive. Featuring 100% tunable power to meet daily light integral (DLI) needs, the TG-600HVR emits up to 600W and 1375 μmol/s of full-spectrum light to provide a versatile growing solution for indoor and greenhouse cultivation.
| Remote Ballast/Driver |
| Removes Heat from Growing Area |
| Plug'n Play Replacement - no more sky hooks for driver maintenance |
| Tunable Power to Meet DLI Needs (TLI) |
| Ideal for High DLI Crops Such as Cannabis |
| Centralized Trouble Shooting and Maintenance |
| Cost Effective and High Efficiency |
| Full Spectrum |
| Zone, Local, and Cloud Control |
| Efficacy | 2.4 µmol/J @ 277VAC |
| PPF | 1564 µmol/s |
| Input Power | 642W @ 277 VAC |
| Input Voltage | 100-277 VAC |
| Weight - Bar/Fixture | 14 lbs. |
| Thermal Management | Passive |
| Dimming | 0-10 V |
| Max Ambient Temperature | 45 º C |
| Power Factor | >0.96 |
| Supply Frequency | 50/60 Hz |
| THD | >10% |
| Lifetime | L90: >50,000 hrs. |
| Warranty | 5 Years Limited Warranty |
| Certifications | UL8800, UL1598 |
| Spectrum Full Plant (FP, WL) |
| Flower Power Spectrum |
| Height: | 4 inches |
| Width: | 4 inches |
| Length: | 46 inches |
TG-1000HVR
Best suited for large canopies, the TG-1000HVR delivers optimal growing spectrum for plants to thrive. Featuring 100% tunable power to meet daily light integral (DLI) needs, the TG-1000HVR emits up to 1000W and 2750 μmol/s of full-spectrum light to provide a versatile growing solution for indoor and greenhouse cultivation.
| Remote Ballast/Driver |
| Removes Heat from Growing Area |
| Plug'n Play Replacement |
| Tunable Power to Meet DLI Needs (TLI) |
| Ideal for High DLI Crops Such as Cannabis |
| Centralized Troubleshooting and Maintenance |
| Cost Effective and High Efficiency |
| Full Spectrum |
| Zone, Local, and Cloud Control |
| PPF | up to 2400 umol/s |
| Tunable Power | 0-1000W |
| Voltage | HVDC |
| Weight | 18 lbs. |
| Efficacy | 2.4 umol/J |
| Dimming | 0-100% |
| Operating Temp | -20C to 40C |
| Thermal Management | Passive |
| Ballast | Remote |
| Spectrum | Full Plant (WL) |
| TLI | Yes |
| Heat Output | 3412 BTU/hr |
| Warranty | 3 - 5 years |
| Spectrum: Full Plant (WL / WL3) |

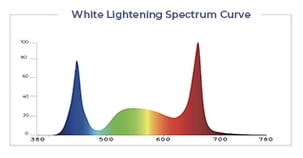

| Dual Peak at 480 and 600nm |
| Height: | 5.8 inches |
| Width: | 4 inches |
| Length: | 46 inches |
IL-120HVL-FP3
Introducing TSRgrow Interlighting product series. Designed for vine crops such as tomatoes and cucumbers and perfect for cannabis cultivation. The Interlighting Series deliver targeted spectrums to optimize crop growth, offering growers a groundbreaking under canopy lighting solution.
| Easy Installation |
| Plug n Play |
| Multi Length Options (4' or 8') |
| Maximize Yields and Growth |
| Daisy Chain Connection |
| Spectrum | FP3 |
| Efficacy | 2.75 umol/J@277AC |
| PPF | 330 umol/s |
| Input Power | 120W @ 277V AC |
| Input Voltage | 120-277V AC |
| Dimensions | 2 in x 2.6 in x 47 in |
| Weight - Bar/Fixture | 14 lbs. |
| Mounting Height | >12-36º Under Canopy |
| Thermal Management | Passive |
| Dimming | 0-10V |
| Max Operating Temp | 45ºC |
| Power Factor | >0.95 |
| Supply Frequency | 50/60 Hz |
| THD | <10% |
| Lifetime | Q90:>36,000 hrs. |
| IP Rating | 66 |
| Warranty | 5 Years Limited Warranty |
| Certifications | UL8800, DLC |
| Spectrum: Flower Power, FP3 |
| Height: | 52 inches |
| Width: | 2.6 inches |
| Length: | 47 inches |
