Vertical Lighting Solutions
LED LIGHTING SOLUTIONS
Advanced LED lighting is the best and most efficient solution for your indoor grow.
Using remote high voltage DC driver technology, TSRgrow's LED lighting solutions deliver 100% tunable power for precise DLI control, resulting in outstanding quality and yield every grow cycle!
TG-30HVR
Delivering the optimal growing spectrum for plants to thrive, the TG-30HVR only consumes 30 watts and produces 60 μmol/s of full-spectrum light to provide a versatile growing solution for indoor and greenhouse cultivation.

- P65 Rated
- Daisy Chain Multiple Bars Together
- Low Profile
- Designed for Vertical Growing
- Easy Mounting High Yield Spectrum
PPF | 60 μmol/s |
Power | 30W |
Efficacy | 2 μmol/J |
Operating Temperature | -20ºC to 40ºC |
Thermal Management | Passive |
Dimming | No |
Weight | 2 lbs |
TLI | Yes |
Heat Output | 256 - 512 BTU/hr |
Warranty | 3 - 5 years |
- Spectrum Full Plant (FP, WL)
- Flower Power Spectrum

- Height: 1.6 inches
- Width: 1.4 inches
- Length: 48.6 inches

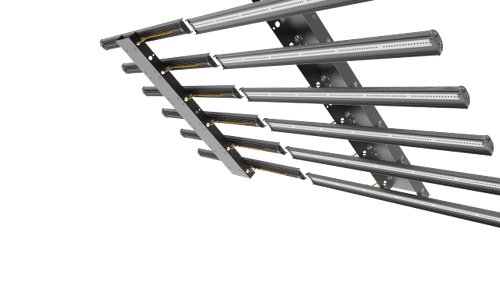

TG-100HVR
The TG-100HVR folding style fixture is designed for large scale commercial growing. No on-board ballasts allow for unlimited flexibility in layout design, remove
heat from the grow room and result in easy installation, simplified maintenance and
unparalleled performance and control.

- No Local Ballast
- Removes Heat from Growing Area
- Plug n'play replacement, simplified maintenance
- Tunable Power to Meet All DLI Needs (TLI)
- Daisy-chained
- Ideal for High DLI Crops such as Cannabis
- Perfect for Vertical Applications
- A Variety of Configurations
- Centralized Troubleshooting and Maintenance - no need for additional dimming wire installation
- Highly Efficient and Cost Effective
- Full Spectrum
- Zone, Local, and Cloud Control
PPF |
0-3000 µmol/s |
Tunable Power | 1000 W |
Voltage | HVDC |
Efficacy | up to 3 µmol/J |
Dimming | 0 - 100% |
Operating Temperature | -20ºC to 40ºC |
Thermal Management | Passive |
Ballast | Remote |
Weight | 18 lbs. |
Spectrum | Full |
Heat Output | up to 3414 BTU/hr |
Warranty | 3-5 years |
- White Lightening (WL3S)
- White Lightening (WL)
- Veg Spectrum (VS)
- Flower Power Spectrum (FP)

- Height: 43 inches
- Width: 47 inches

TG-100HVR
The TG-100HVR folding style fixture is designed for large scale commercial growing. No on-board ballasts allow for unlimited flexibility in layout design, remove
heat from the grow room and result in easy installation, simplified maintenance and
unparalleled performance and control.

- Full Plant Spectrum to Maximize Yield
- Remote Power Servers
- Remove Heat from Growing Area
- Plug 'n play Quick Disconnects for Easy Installation and Servicing
- Tunable Power to Meet DLI Needs (TLI)
- Ideal for High DLI Crops Such as Cannabis
- Centralized Troubleshooting and Maintenance and Control - no need for additional dimming wire installation
- Cost Effective and Highly Efficient
- Full Spectrum
- Zone, Local, and Cloud Control
PPF |
0-2565 µmol/s |
Tunable Power | 0-950 W |
Voltage | HVDC |
Efficacy | 2.7 µmol/J |
Dimming | 0 - 100% |
Operating Temperature | -20ºC to 40ºC |
Thermal Management | Passive |
Ballast | Remote |
Weight | 30 lbs. |
Spectrum | Full |
Heat Output | 0-3243 BTU/hr |
Warranty | 3-5 years |
- Spectrum Full Plant (FP, WL)
- Flower Power Spectrum
- Custom Spectrums Available

- Height: 3.75 inches
- Width: 45 inches
- Length: 44.25 inches
